Container kill

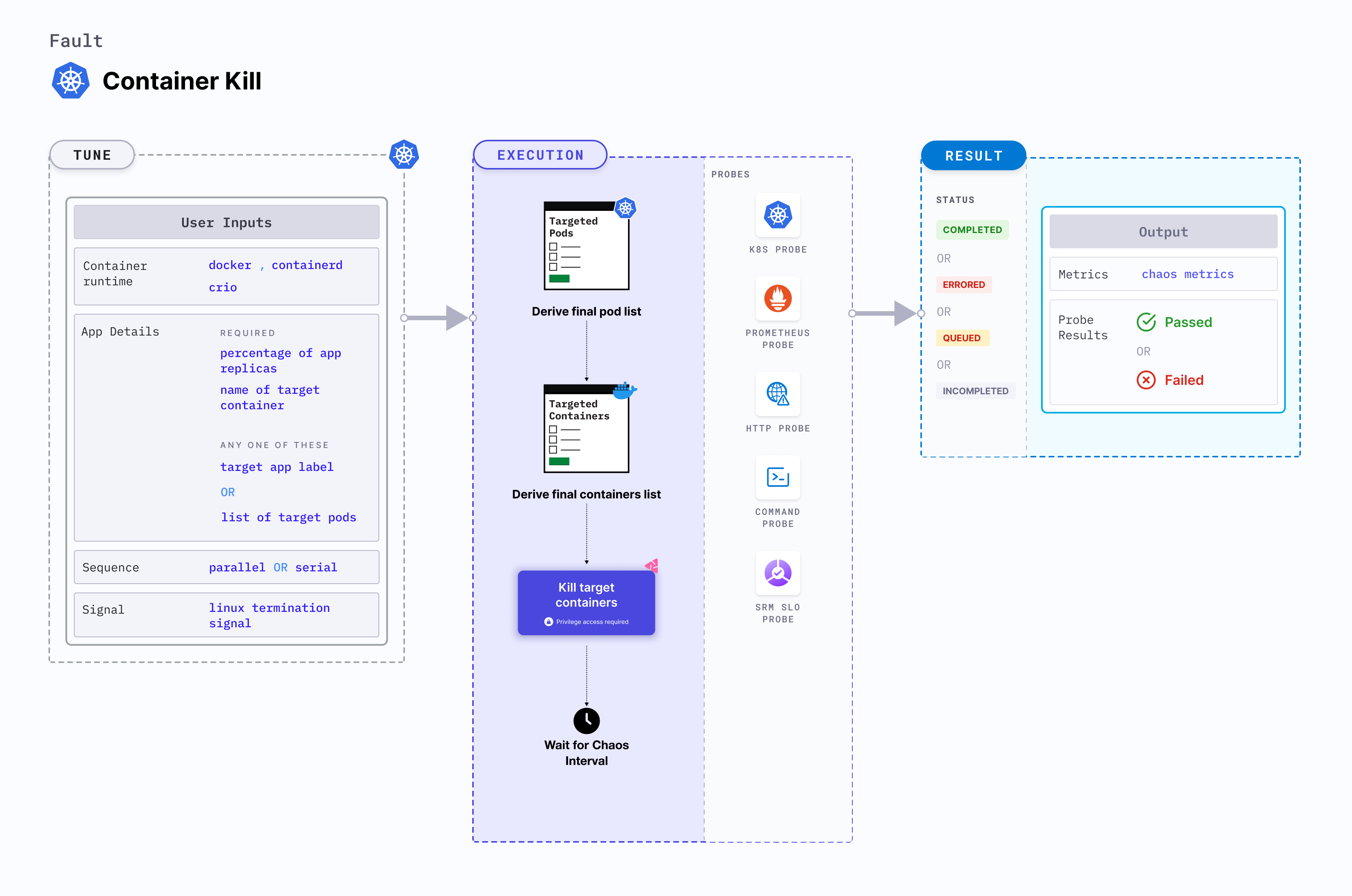

Container kill is a Kubernetes pod-level chaos fault that causes container failure on specific or random replicas of an application resource.

Use cases

Container kill:

• Tests an application's deployment sanity (replica availability and uninterrupted service) and recovery workflow when certain replicas are not available.
• Tests the recovery of pods that possess sidecar containers.

Permissions required

Below is a sample Kubernetes role that defines the permissions required to execute the fault.

apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  namespace: hce
  name: container-kill
spec:
  definition:
    scope: Cluster # Supports "Namespaced" mode too
permissions:
  - apiGroups: [""]
    resources: ["pods"]
    verbs: ["create", "delete", "get", "list", "patch", "deletecollection", "update"]
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["create", "get", "list", "patch", "update"]
  - apiGroups: [""]
    resources: ["pods/log"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["deployments, statefulsets"]
    verbs: ["get", "list"]
  - apiGroups: [""]
    resources: ["replicasets, daemonsets"]
    verbs: ["get", "list"]
  - apiGroups: [""]
    resources: ["chaosEngines", "chaosExperiments", "chaosResults"]
    verbs: ["create", "delete", "get", "list", "patch", "update"]
  - apiGroups: ["batch"]
    resources: ["jobs"]
    verbs: ["create", "delete", "get", "list", "deletecollection"]

Prerequisites

• Kubernetes > 1.16
• The application pods should be in the running state before and after injecting chaos.

Optional tunables

Tunable	Description	Notes
TARGET_CONTAINER	Name of the container that is killed.	If it is not provided, the fault deletes the first container. For more information, go to kill specific container
CHAOS_INTERVAL	Time interval between two successive container kills (in seconds).	Default: 10 s. For more information, go to chaos interval
TOTAL_CHAOS_DURATION	Duration for which to insert chaos (in seconds).	Default: 20 s. For more information, go to duration of the chaos
PODS_AFFECTED_PERC	Percentage of total pods to target. It takes numeric values only.	Default: 0 (corresponds to 1 replica). For more information, go to pod affected percentage
TARGET_PODS	Comma-separated list of application pod names subject to container kill.	If it is not provided, target pods are randomly based on appLabels provided. For more information, go to target specific pods
NODE_LABEL	Node label used to filter the target node if TARGET_NODE environment variable is not set.	It is mutually exclusive with the TARGET_NODE environment variable. If both are provided, the fault uses TARGET_NODE. For more information, go to node label.
RAMP_TIME	Period to wait before injecting chaos (in seconds).	For example, 30 s. For more information, go to ramp time
SEQUENCE	Sequence of chaos execution for multiple target pods.	Default value: parallel. Supports serial and parallel. For more information, go to sequence of chaos execution
SIGNAL	Termination signal used for container kill.	Defaults to SIGKILL. For more information, go to signal for kill
SOCKET_PATH	Path to the containerd/crio/docker socket file.	Default /run/containerd/containerd.sock. For more information, go to socket path
CONTAINER_RUNTIME	Container runtime interface for the cluster.	Default: containerd. Supports docker, containerd and crio. For more information, go to container runtime

Kill specific container

Name of the target container. Tune it by using the TARGET_CONTAINER environment variable. If TARGET_CONTAINER environment variable is set to empty, the fault uses the first container of the target pod.

The following YAML snippet illustrates the use of this environment variable:

# kill the specific target container
apiVersion: litmuschaos.io/v1alpha1
kind: ChaosEngine
metadata:
  name: engine-nginx
spec:
  engineState: "active"
  annotationCheck: "false"
  appinfo:
    appns: "default"
    applabel: "app=nginx"
    appkind: "deployment"
  chaosServiceAccount: litmus-admin
  experiments:
    - name: container-kill
      spec:
        components:
          env:
            # name of the target container
            - name: TARGET_CONTAINER
              value: "nginx"
            - name: TOTAL_CHAOS_DURATION
              VALUE: "60"

Container runtime and socket path

The CONTAINER_RUNTIME and SOCKET_PATH environment variables to set the container runtime and socket file path, respectively.

• CONTAINER_RUNTIME: It supports docker, containerd, and crio runtimes. The default value is containerd.
• SOCKET_PATH: It contains path of containerd socket file by default(/run/containerd/containerd.sock). For docker, specify path as /var/run/docker.sock. For crio, specify path as /var/run/crio/crio.sock.

The following YAML snippet illustrates the use of these environment variables:

## provide the container runtime and socket file path
apiVersion: litmuschaos.io/v1alpha1
kind: ChaosEngine
metadata:
  name: engine-nginx
spec:
  engineState: "active"
  annotationCheck: "false"
  appinfo:
    appns: "default"
    applabel: "app=nginx"
    appkind: "deployment"
  chaosServiceAccount: litmus-admin
  experiments:
    - name: container-kill
      spec:
        components:
          env:
            # runtime for the container
            # supports docker, containerd, crio
            - name: CONTAINER_RUNTIME
              value: "containerd"
            # path of the socket file
            - name: SOCKET_PATH
              value: "/run/containerd/containerd.sock"
            - name: TOTAL_CHAOS_DURATION
              VALUE: "60"

Signal for kill

Linux signal passed when killing the container. Its default value is set to SIGTERM. Tune it by using the SIGNAL environment variable.

The following YAML snippet illustrates the use of this environment variable:

# specific linux signal passed while kiiling container
apiVersion: litmuschaos.io/v1alpha1
kind: ChaosEngine
metadata:
  name: engine-nginx
spec:
  engineState: "active"
  annotationCheck: "false"
  appinfo:
    appns: "default"
    applabel: "app=nginx"
    appkind: "deployment"
  chaosServiceAccount: litmus-admin
  experiments:
    - name: container-kill
      spec:
        components:
          env:
            # signal passed while killing container
            # defaults to SIGTERM
            - name: SIGNAL
              value: "SIGKILL"
            - name: TOTAL_CHAOS_DURATION
              VALUE: "60"
